    • Synthetic Fiber Rope

      Rope Stopper

    • Description

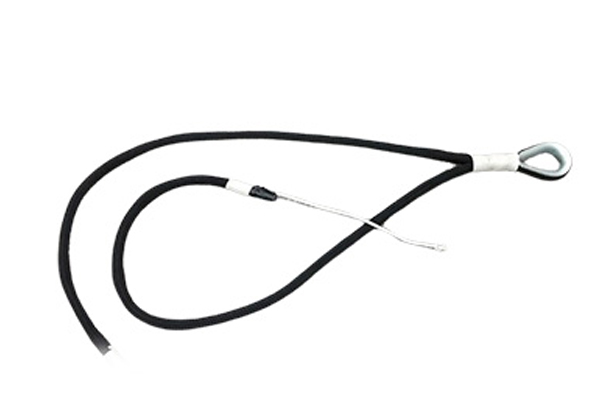

      Sigmaguard Rope Stopper is high performance double braided type UHMWPE(Ultra high Molecular Weight Polyethylene) and Polyester braided cover.
      This optimized combination offers the property of higher strength, excellent resistance to abrasion and easy handling and improved efficiency.

    • Features

    • Filter

      • Stopper

    • Patent

    • Note

    Product Regulations

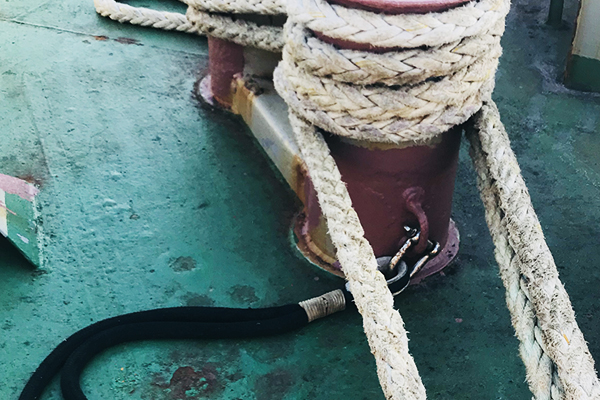

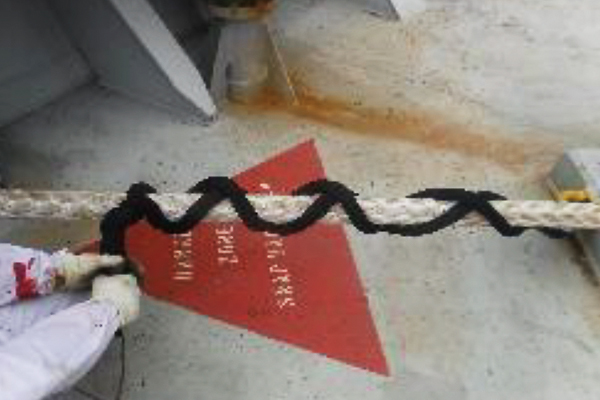

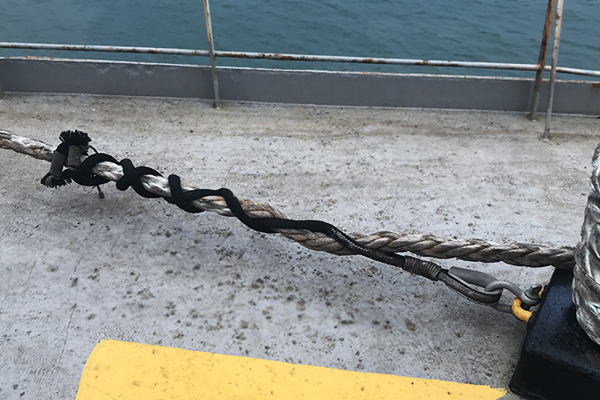

    • Rope Stopper is the most common equipment used to temporarily share the load of the main line rope when it is tied to a bit.
    • Covered Polyester offers superior abrasion resistance and increasing coefficient of friction.
    • Core UHMWPE offers high strength and minimum elongation under load, providing excellent control and stability.
    • Very lightweight enables easy to handle and work.
    Product Regulations



    Quote from RIGHTSHIP(RISQ)


    10.14 Are appropriate stoppers in use and are the mooring ropes turned up to bitts correctly? (V)


    Guide to Inspection


    With fibre ropes, the stopper used should ideally be of the same material as the rope being stoppered, with synthetic stoppers for synthetic lines and natural fibre stoppers for natural fibre lines.

    The MBL of the stopper should be around 50% of the MBL of the line being stoppered. Polyamide (nylon) stoppers should not be used on polyamide lines due to the low coefficient of friction of the material. (Safe Mooring Practice, 2009)




    Quote from Pilbara Ports Mooring Standards (Port Hedland)

    Issue Date : 4/06/2024


    5. Additional Requirements

    The MBL of the stopper should be around 50% of the MBL of the line being stopped. Polyamide (nylon) stoppers should not be used on polyamide lines due to the low coefficient of friction of the material.
